STK541UC60C-E

In Stock: 7,204

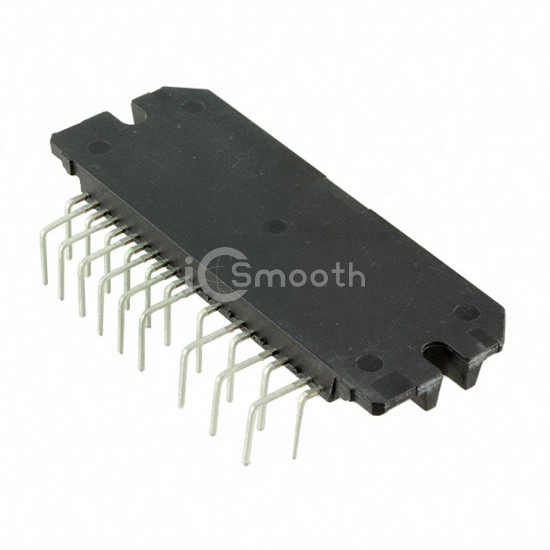

STK541UC60C-E - onsemi - PMIC - Full, Half-Bridge Drivers
REF: STK541UC60C-E onsemi
STK541UC60C-E

onsemi

MODULE IPM INVERTER 3PH 23SIP

STK541UC60C-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. MODULE IPM INVERTER 3PH 23SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 23-SIP, 19 Leads, Formed Leads.

Datasheet Request a Quote

In Stock: 7,204

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyIGBT
Rds On (Typ)-
Current - Output / Channel10A
Current - Peak Output20A
Voltage - Supply12.5V ~ 17.5V
Voltage - Load450V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionCurrent Limiting, UVLO
Mounting TypeThrough Hole
Package / Case23-SIP, 19 Leads, Formed Leads
Supplier Device Package23-SIP
