STK534U362C-E

In Stock: 7,017

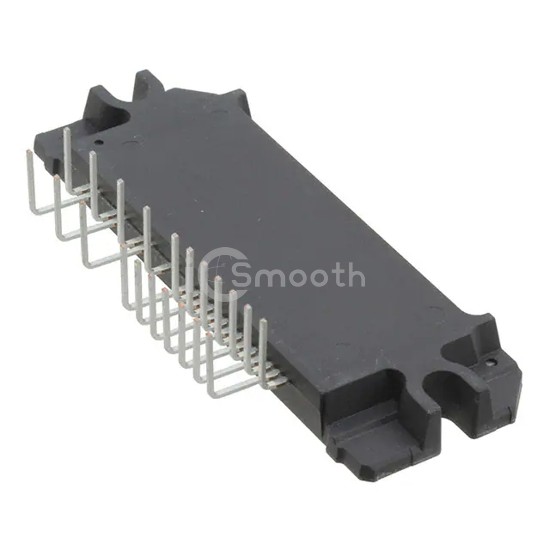

STK534U362C-E - onsemi - PMIC - Full, Half-Bridge Drivers
REF: STK534U362C-E onsemi
STK534U362C-E

onsemi

IC MOTOR DRIVER 29SIP

STK534U362C-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC MOTOR DRIVER 29SIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 29-SSIP Module, 21 Leads, Formed Leads.

Datasheet Request a Quote

In Stock: 7,017

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyIGBT
Rds On (Typ)-
Current - Output / Channel10A
Current - Peak Output20A
Voltage - Supply12.5V ~ 17.5V
Voltage - Load450V (Max)
Operating Temperature-20°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeThrough Hole
Package / Case29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package29-SIP
