SN74LS684N

In Stock: 17,253

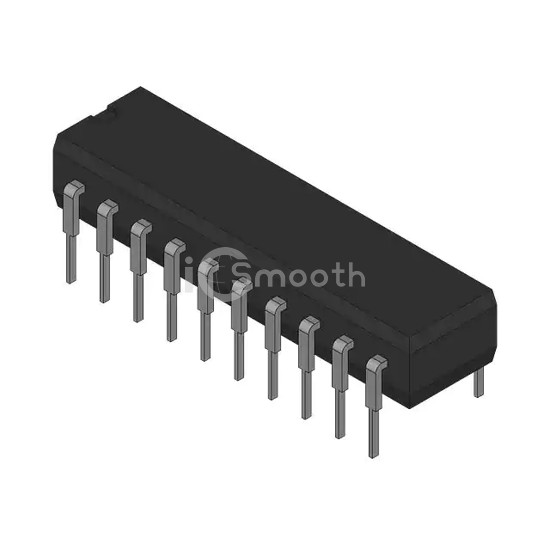

SN74LS684N - onsemi - Logic - Comparators
REF: SN74LS684N onsemi
SN74LS684N

onsemi

MAGNITUDE COMPARATOR

SN74LS684N is a Logic - Comparators manufactured by onsemi. MAGNITUDE COMPARATOR. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.85V ~ 5.25V, package / case 20-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 17,253

Specifications

13 parameters
Product StatusObsolete
TypeMagnitude Comparator
Number of Bits8
OutputActive Low
Output FunctionA=B, A>B
Voltage - Supply4.85V ~ 5.25V
Current - Output High, Low400µA, 24mA
Max Propagation Delay @ V, Max CL30ns @ 5V, 45pF
Current - Quiescent (Iq)-
Operating Temperature0°C ~ 70°C
Package / Case20-DIP (0.300", 7.62mm)
Supplier Device Package20-PDIP
Mounting TypeThrough Hole
