SMUN2212T1G

In Stock: 8,123

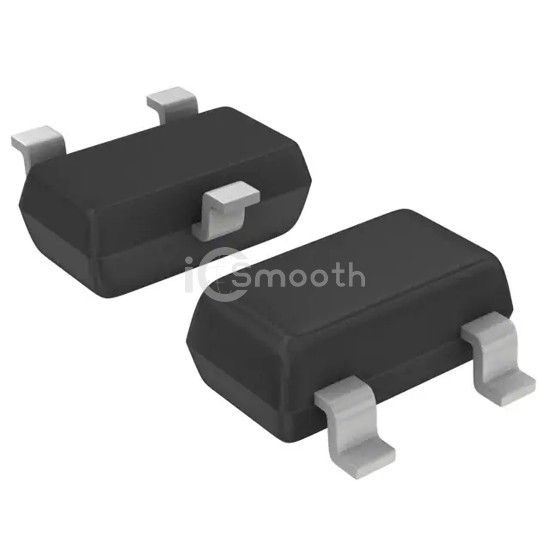

SMUN2212T1G - onsemi - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: SMUN2212T1G onsemi
SMUN2212T1G

onsemi

TRANS PREBIAS NPN 50V 100MA SC59

SMUN2212T1G is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by onsemi. TRANS PREBIAS NPN 50V 100MA SC59. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3, current - collector (ic) (max) 100 mA, power - max 230 mW.

Datasheet Request a Quote

In Stock: 8,123

Specifications

14 parameters
Product StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)22 kOhms
Resistor - Emitter Base (R2)22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max230 mW
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59
