SGP23N60UFTU

In Stock: 2,419
SGP23N60UFTU - onsemi - Transistors - IGBTs - Single
REF: SGP23N60UFTU onsemi
SGP23N60UFTU

onsemi

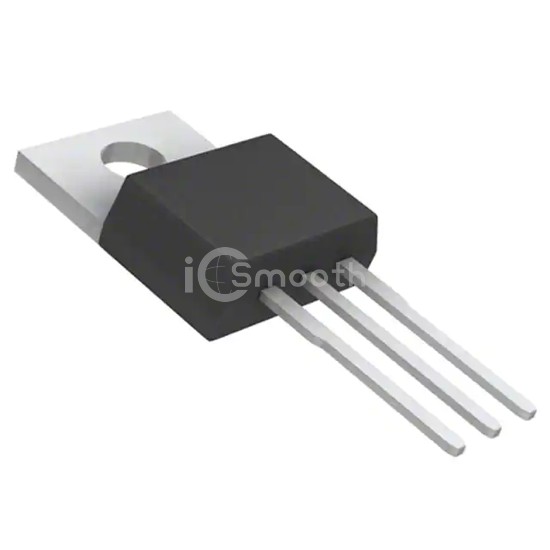

IGBT 600V 23A TO220-3

SGP23N60UFTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 23A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 23 A.

Datasheet Request a Quote

In Stock: 2,419

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)23 A
Current - Collector Pulsed (Icm)92 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 12A
Power - Max100 W
Switching Energy115µJ (on), 135µJ (off)
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C17ns/60ns
Test Condition300V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
