Name: SGH80N60UFTU
Brand: onsemi
SKU: SGH80N60UFTU
Availability: InStock

REF: SGH80N60UFTU onsemi

SGH80N60UFTU

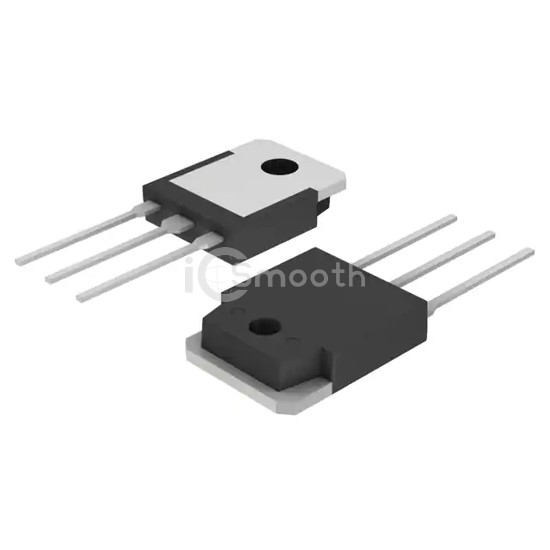

IGBT 600V 80A 195W TO3P

SGH80N60UFTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 80A 195W TO3P. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 4,078

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	220 A
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 40A
Power - Max	195 W
Switching Energy	570µJ (on), 590µJ (off)
Input Type	Standard

Gate Charge	175 nC
Td (on/off) @ 25°C	23ns/90ns
Test Condition	300V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-3P
