SGH80N60UFDTU

In Stock: 4,173
SGH80N60UFDTU - onsemi - Transistors - IGBTs - Single
REF: SGH80N60UFDTU onsemi
SGH80N60UFDTU

onsemi

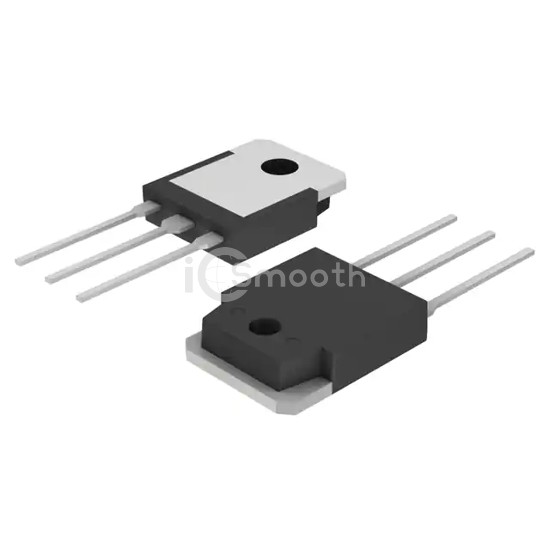

IGBT 600V 80A 195W TO3P

SGH80N60UFDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 80A 195W TO3P. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 4,173

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)220 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 40A
Power - Max195 W
Switching Energy570µJ (on), 590µJ (off)
Input TypeStandard
Gate Charge175 nC
Td (on/off) @ 25°C23ns/90ns
Test Condition300V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)95 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
