SGH40N60UFDTU - onsemi - Transistors - IGBTs - Single
REF: SGH40N60UFDTU onsemi
SGH40N60UFDTU

onsemi

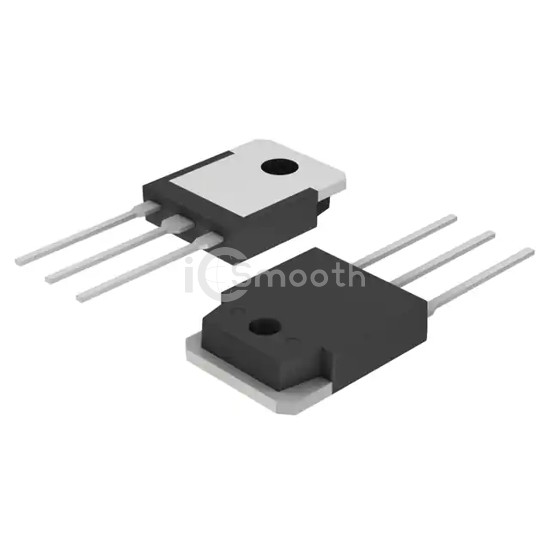

IGBT 600V 40A 160W TO3P

SGH40N60UFDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 40A 160W TO3P. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 117,929

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 20A
Power - Max160 W
Switching Energy160µJ (on), 200µJ (off)
Input TypeStandard
Gate Charge97 nC
Td (on/off) @ 25°C15ns/65ns
Test Condition300V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)60 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
