SGF23N60UFDTU

In Stock: 7,505
SGF23N60UFDTU - onsemi - Transistors - IGBTs - Single
REF: SGF23N60UFDTU onsemi
SGF23N60UFDTU

onsemi

IGBT 600V 23A 75W TO3PF

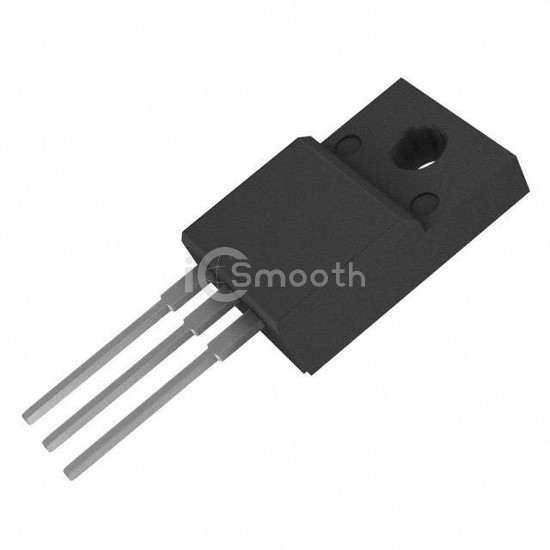

SGF23N60UFDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 23A 75W TO3PF. Key specifications: mounting type Through Hole, package / case TO-3P-3 Full Pack, current - collector (ic) (max) 23 A, power - max 75 W.

Request a Quote

In Stock: 7,505

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)23 A
Current - Collector Pulsed (Icm)92 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 12A
Power - Max75 W
Switching Energy115µJ (on), 135µJ (off)
Input TypeStandard
Gate Charge49 nC
Td (on/off) @ 25°C17ns/60ns
Test Condition300V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr)60 ns
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
