Name: SFT1431-W
Brand: onsemi
SKU: SFT1431-W
Price: 0.31 USD
Availability: InStock

REF: SFT1431-W onsemi

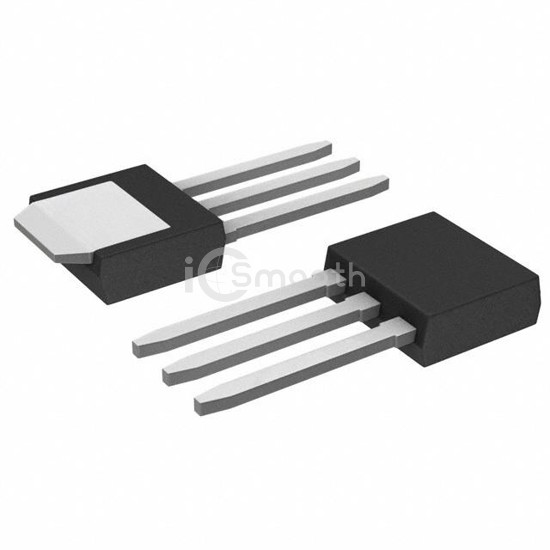

SFT1431-W

MOSFET N-CH 35V 11A IPAK/TP

SFT1431-W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 35V 11A IPAK/TP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 12,500

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	35 V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	25mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id	2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	17.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	960 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 15W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	IPAK/TP
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
