Name: SD05T1G
Brand: onsemi
SKU: SD05T1G
Price: 0.34 USD
Availability: InStock

REF: SD05T1G onsemi

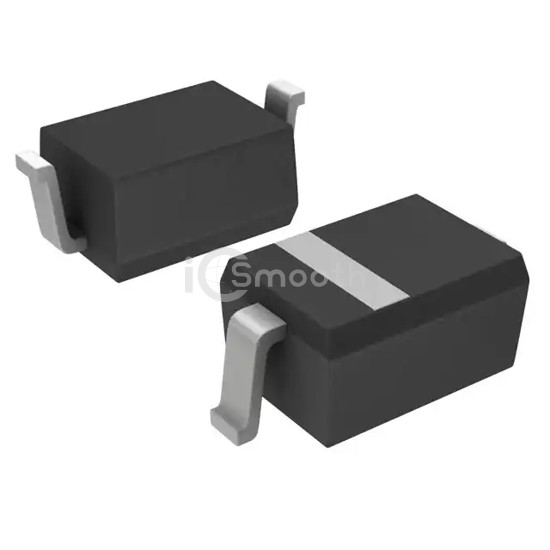

SD05T1G

TVS DIODE 5VWM 9.8VC SOD323

SD05T1G is a TVS - Diodes manufactured by onsemi. TVS DIODE 5VWM 9.8VC SOD323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 60,000

Tiered Pricing USD

1+ $0.3400 —

10+ $0.2010 -41%

100+ $0.1433 -58%

500+ $0.1147 -66%

1,000+ $0.1058 -69% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	6.2V
Voltage - Clamping (Max) @ Ipp	9.8V
Current - Peak Pulse (10/1000µs)	24A (8/20µs)

Power - Peak Pulse	350W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	350pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
