SCH1337-TL-W

In Stock: 79,374
SCH1337-TL-W - onsemi - Transistors - FETs, MOSFETs - Single
REF: SCH1337-TL-W onsemi

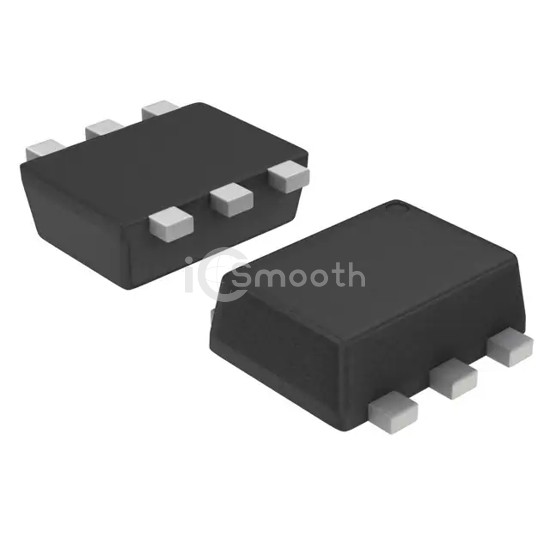

SCH1337-TL-W

onsemi

MOSFET P-CH 30V 2A SOT563/SCH6

SCH1337-TL-W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 30V 2A SOT563/SCH6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 79,374

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs150mOhm @ 1A, 10V
Vgs(th) (Max) @ Id2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs3.9 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds172 pF @ 10 V
FET Feature-
Power Dissipation (Max)800mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-563/SCH6
Package / CaseSOT-563, SOT-666
