Name: PCP1302-TD-H
Brand: onsemi
SKU: PCP1302-TD-H
Availability: InStock

REF: PCP1302-TD-H onsemi

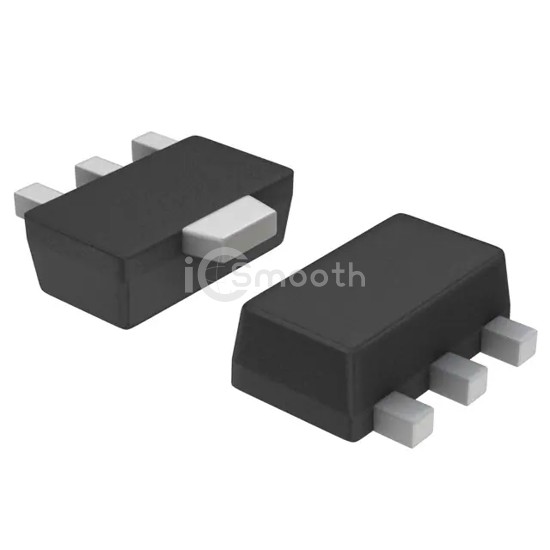

PCP1302-TD-H

MOSFET P-CH 60V 3A SOT89/PCP-1

PCP1302-TD-H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 60V 3A SOT89/PCP-1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 4,674

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	266mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6.4 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	262 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	3.5W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89/PCP-1
Package / Case	TO-243AA
