NZT560A

In Stock: 2,155
NZT560A - onsemi - Transistors - Bipolar (BJT) - Single
REF: NZT560A onsemi
NZT560A

onsemi

TRANS NPN 60V 3A SOT223-4

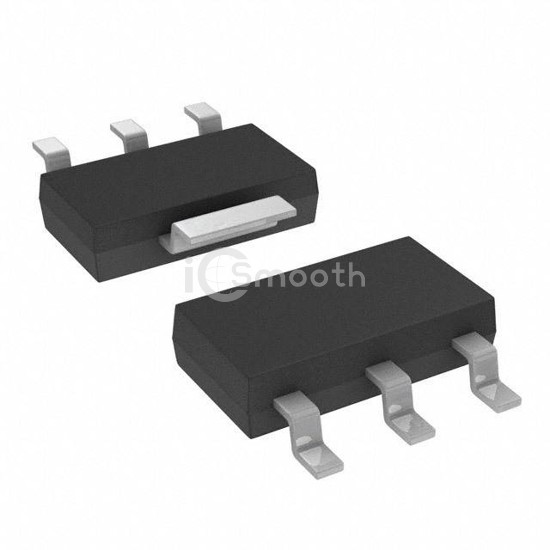

NZT560A is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 60V 3A SOT223-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 2,155

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic400mV @ 300mA, 3A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce250 @ 500mA, 2V
Power - Max1 W
Frequency - Transition75MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-261-4, TO-261AA
Supplier Device PackageSOT-223-4
