Name: NXH80T120L3Q0S3G
Brand: onsemi
SKU: NXH80T120L3Q0S3G
Price: 54.25 USD
Availability: InStock

REF: NXH80T120L3Q0S3G onsemi

NXH80T120L3Q0S3G

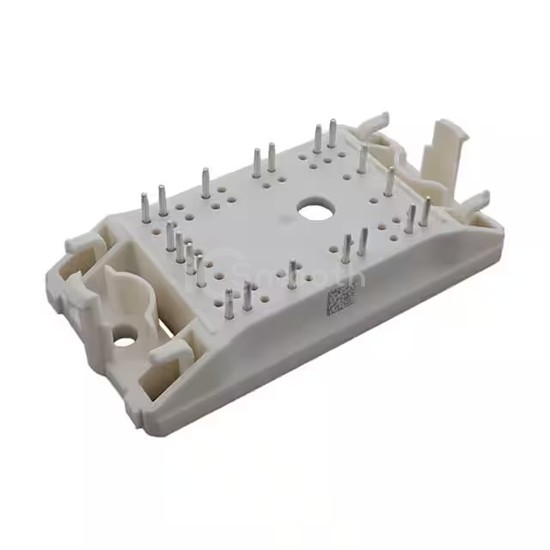

PIM GENERATION3 Q0PACK 1200V, 80

NXH80T120L3Q0S3G is a Transistors - IGBTs - Modules manufactured by onsemi. PIM GENERATION3 Q0PACK 1200V, 80. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 24

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	75 A
Power - Max	188 W
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 80A
Current - Collector Cutoff (Max)	300 µA

Input Capacitance (Cies) @ Vce	18.15 nF @ 20 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	20-PIM/Q0PACK (55x32.5)
