NXH400N100H4Q2F2PG

In Stock: 36

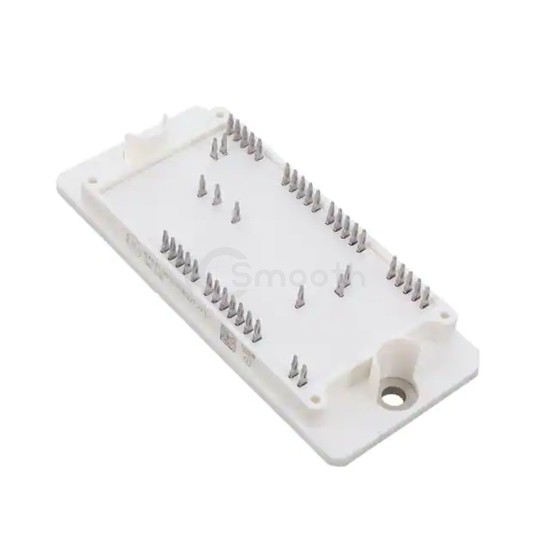

NXH400N100H4Q2F2PG - onsemi - Transistors - IGBTs - Modules
REF: NXH400N100H4Q2F2PG onsemi
NXH400N100H4Q2F2PG

onsemi

MASS MARKET 250KW 1500V Q2 PACK

NXH400N100H4Q2F2PG is a Transistors - IGBTs - Modules manufactured by onsemi. MASS MARKET 250KW 1500V Q2 PACK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 409 A.

Datasheet Request a Quote

In Stock: 36

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)1000 V
Current - Collector (Ic) (Max)409 A
Power - Max959 W
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 400A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce26.093 nF @ 20 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device Package42-PIM/Q2PACK (93x47)
