Name: NXH25C120L2C2SG
Brand: onsemi
SKU: NXH25C120L2C2SG
Price: 60.63 USD
Availability: InStock

REF: NXH25C120L2C2SG onsemi

NXH25C120L2C2SG

IGBT MODULE, CIB 1200 V, 25 A IG

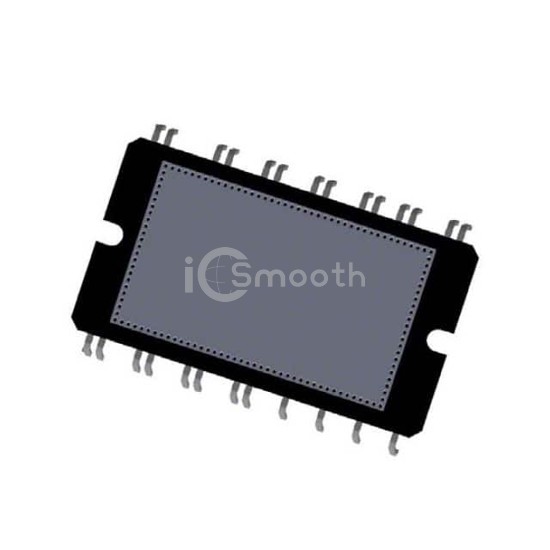

NXH25C120L2C2SG is a Transistors - IGBTs - Modules manufactured by onsemi. IGBT MODULE, CIB 1200 V, 25 A IG. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 26-PowerDIP Module (1.199", 47.20mm), current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 5,040

Specifications

15 parameters

Product Status	Active
IGBT Type	-
Configuration	Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	25 A
Power - Max	20 mW
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 25A
Current - Collector Cutoff (Max)	250 µA

Input Capacitance (Cies) @ Vce	6.2 nF @ 20 V
Input	Three Phase Bridge Rectifier
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	26-PowerDIP Module (1.199", 47.20mm)
Supplier Device Package	26-DIP
