Name: NVTFS5824NLTWG
Brand: onsemi
SKU: NVTFS5824NLTWG
Availability: InStock

REF: NVTFS5824NLTWG onsemi

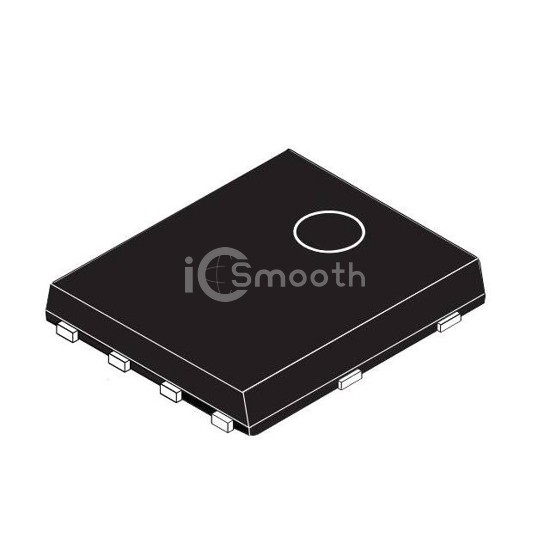

NVTFS5824NLTWG

NVTFS5824 - POWER MOSFET 60V, 20

NVTFS5824NLTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. NVTFS5824 - POWER MOSFET 60V, 20. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 7,034

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	37A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	20.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	850 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta), 57W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WDFN (3.3x3.3)
Package / Case	8-PowerWDFN
