Name: NVTFS010N10MCLTAG
Brand: onsemi
SKU: NVTFS010N10MCLTAG
Price: 1.67 USD
Availability: InStock

REF: NVTFS010N10MCLTAG onsemi

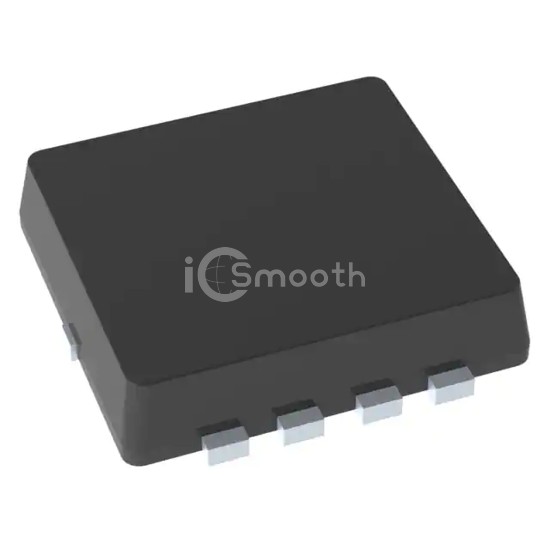

NVTFS010N10MCLTAG

MOSFET N-CH 100V 11.7A/57.8 8DFN

NVTFS010N10MCLTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 11.7A/57.8 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 8,093

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	11.7A (Ta), 57.8 (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	3V @ 85µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2150 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta), 77.8W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WDFN (3.3x3.3)
Package / Case	8-PowerWDFN
