Name: NVTFS007N08HLTAG
Brand: onsemi
SKU: NVTFS007N08HLTAG
Price: 1.28 USD
Availability: InStock

REF: NVTFS007N08HLTAG onsemi

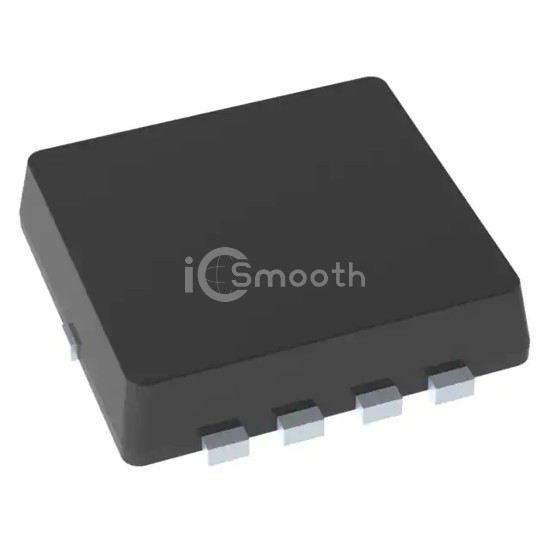

NVTFS007N08HLTAG

MOSFET N-CHANNEL 80V 71A

NVTFS007N08HLTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CHANNEL 80V 71A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 8,465

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	14.4A (Ta), 71A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	3V @ 270µA
Gate Charge (Qg) (Max) @ Vgs	32.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1810 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 79W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WDFN (3.3x3.3)
Package / Case	8-PowerWDFN
