Name: NVMTSC1D3N08M7TXG
Brand: onsemi
SKU: NVMTSC1D3N08M7TXG
Price: 3.03 USD
Availability: InStock

REF: NVMTSC1D3N08M7TXG onsemi

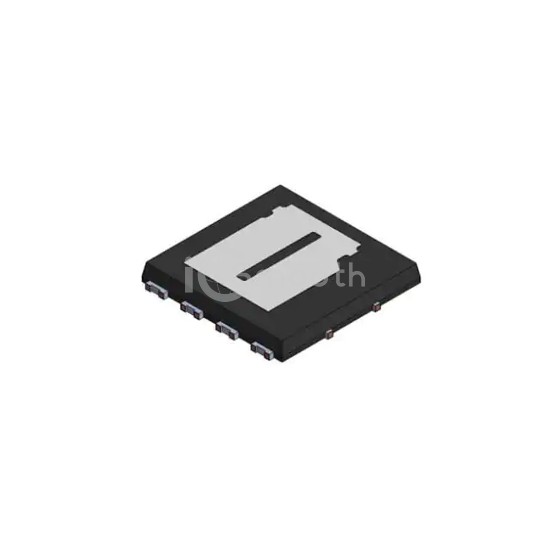

NVMTSC1D3N08M7TXG

MOSFET N-CH 80V 46A/348A 8DFNW

NVMTSC1D3N08M7TXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 46A/348A 8DFNW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 9,968

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	46A (Ta), 348A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.25mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	196 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14530 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	5.1W (Ta), 287W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
