Name: NVMTS4D3N15MC
Brand: onsemi
SKU: NVMTS4D3N15MC
Price: 6.71 USD
Availability: InStock

REF: NVMTS4D3N15MC onsemi

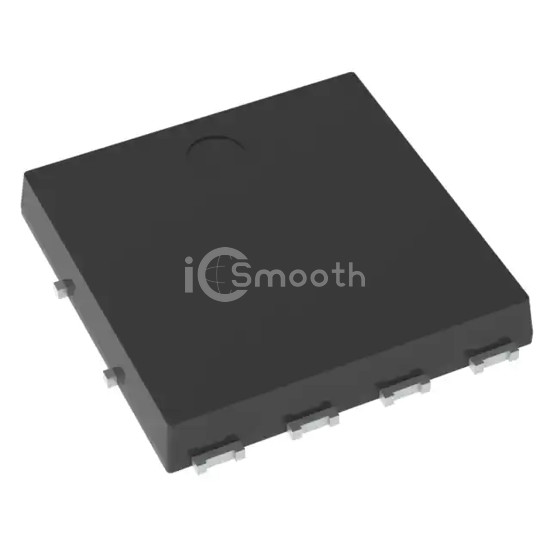

NVMTS4D3N15MC

SINGLE N-CHANNEL POWER MOSFET 00

NVMTS4D3N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SINGLE N-CHANNEL POWER MOSFET 00. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 3,760

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 165A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.45mOhm @ 95A, 10V
Vgs(th) (Max) @ Id	4.5V @ 521µA
Gate Charge (Qg) (Max) @ Vgs	79 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6514 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 292W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
