NVMTS1D5N08H

In Stock: 6,315

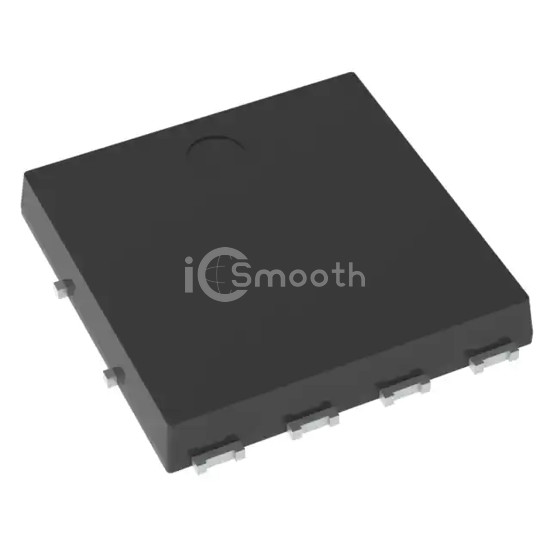

NVMTS1D5N08H - onsemi - Transistors - FETs, MOSFETs - Single
REF: NVMTS1D5N08H onsemi
NVMTS1D5N08H

onsemi

MOSFET N-CH 80V 38A/273A 8DFNW

NVMTS1D5N08H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 38A/273A 8DFNW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Request a Quote

In Stock: 6,315

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C38A (Ta), 273A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.4mOhm @ 90A, 10V
Vgs(th) (Max) @ Id4V @ 490µA
Gate Charge (Qg) (Max) @ Vgs125 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds8220 pF @ 40 V
FET Feature-
Power Dissipation (Max)5W (Ta), 258W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFNW (8.3x8.4)
Package / Case8-PowerTDFN
