Name: NVMTS1D2N08H
Brand: onsemi
SKU: NVMTS1D2N08H
Price: 6.41 USD
Availability: InStock

REF: NVMTS1D2N08H onsemi

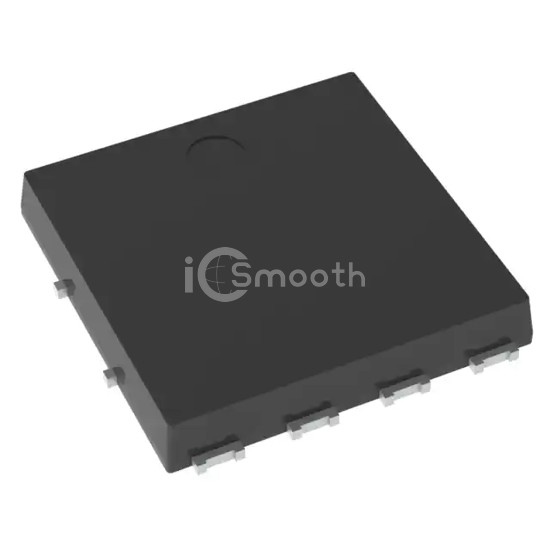

NVMTS1D2N08H

MOSFET N-CH 80V 43.5A/337A 8DFNW

NVMTS1D2N08H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 43.5A/337A 8DFNW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,154

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	43.5A (Ta), 337A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.1mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	4V @ 590µA
Gate Charge (Qg) (Max) @ Vgs	147 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10100 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
