NVMTS0D6N04CTXG

In Stock: 5,039

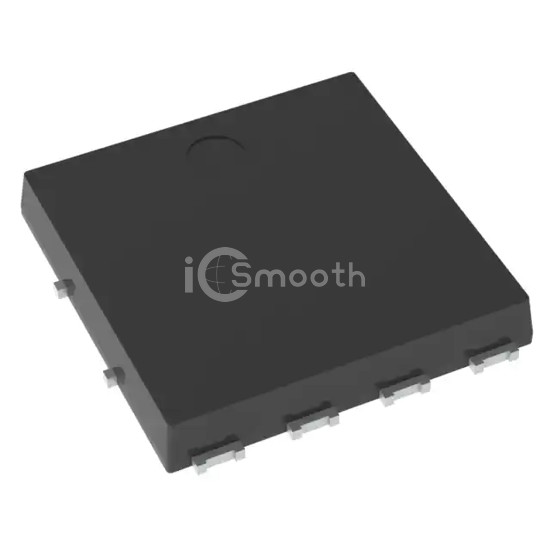

NVMTS0D6N04CTXG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NVMTS0D6N04CTXG onsemi
NVMTS0D6N04CTXG

onsemi

MOSFET N-CH 40V 533A 8DFNW

NVMTS0D6N04CTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 533A 8DFNW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,039

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C533A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.48mOhm @ 50A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs187 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11800 pF @ 20 V
FET Feature-
Power Dissipation (Max)5W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFNW (8.3x8.4)
Package / Case8-PowerTDFN
