Name: NVMTS0D4N04CTXG
Brand: onsemi
SKU: NVMTS0D4N04CTXG
Price: 11.32 USD
Availability: InStock

REF: NVMTS0D4N04CTXG onsemi

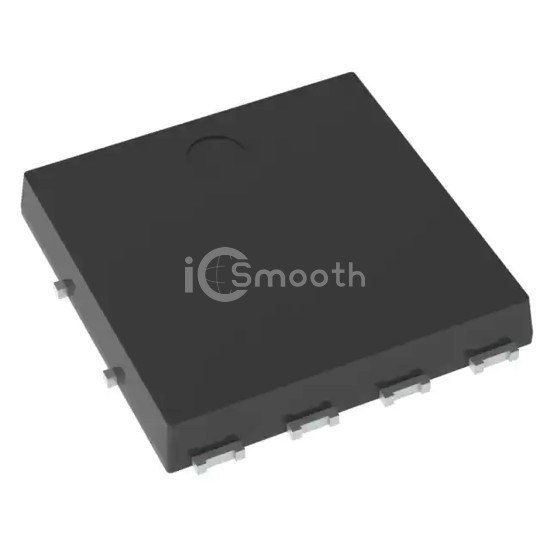

NVMTS0D4N04CTXG

MOSFET N-CH 40V 79.8A/558A 8DFNW

NVMTS0D4N04CTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 79.8A/558A 8DFNW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 6,806

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	79.8A (Ta), 558A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	0.45mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	251 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	16500 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	5W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
