Name: NVMTS0D4N04CLTXG
Brand: onsemi
SKU: NVMTS0D4N04CLTXG
Price: 11.20 USD
Availability: InStock

REF: NVMTS0D4N04CLTXG onsemi

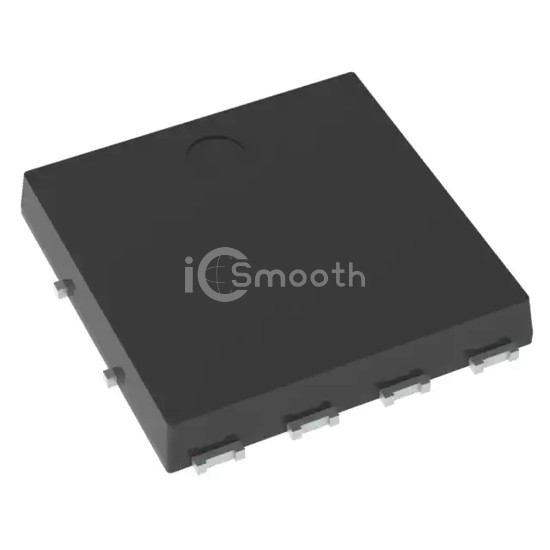

NVMTS0D4N04CLTXG

MOSFET N-CH 40V 553.8A 8DFNW

NVMTS0D4N04CLTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 553.8A 8DFNW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,352

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	553.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	163 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	20600 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	5W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
