NVMFSC1D6N06CL

In Stock: 6,268

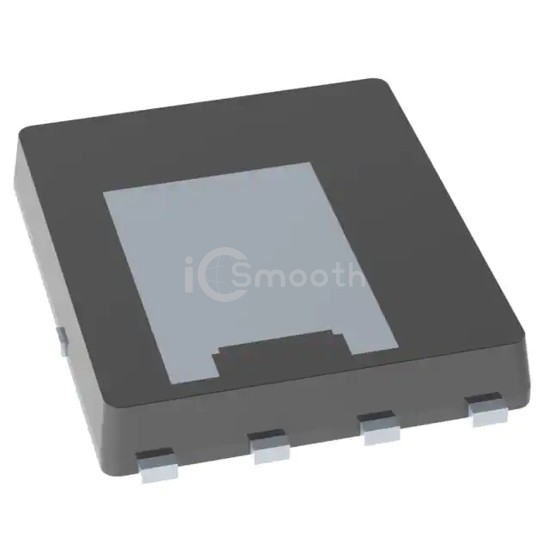

NVMFSC1D6N06CL - onsemi - Transistors - FETs, MOSFETs - Single
REF: NVMFSC1D6N06CL onsemi
NVMFSC1D6N06CL

onsemi

MOSFET N-CH 60V 35A/224A 8DFN

NVMFSC1D6N06CL is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 35A/224A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,268

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C35A (Ta), 224A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs91 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6660 pF @ 25 V
FET Feature-
Power Dissipation (Max)4.1W (Ta), 166W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6.15)
Package / Case8-PowerVDFN
