Name: NVMFSC0D9N04C
Brand: onsemi
SKU: NVMFSC0D9N04C
Price: 6.32 USD
Availability: InStock

REF: NVMFSC0D9N04C onsemi

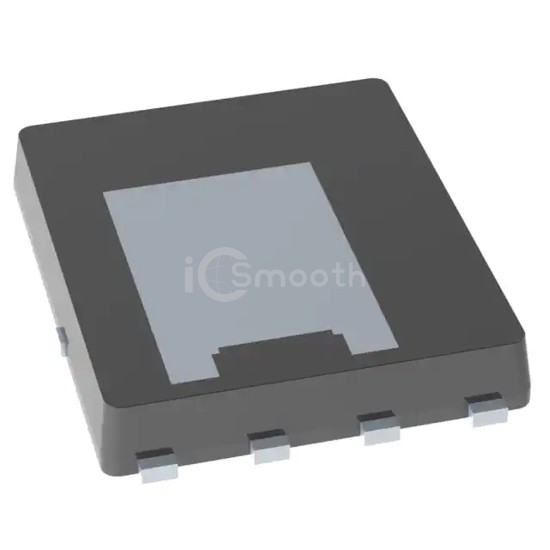

NVMFSC0D9N04C

MOSFET N-CH 40V 48.9A/313A 8DFN

NVMFSC0D9N04C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 48.9A/313A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 1,320

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	48.9A (Ta), 313A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	0.87mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	86 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6100 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	4.1W (Ta), 166W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6.15)
Package / Case	8-PowerVDFN
