Name: NVMFD6H852NLT1G
Brand: onsemi
SKU: NVMFD6H852NLT1G
Price: 1.23 USD
Availability: InStock

REF: NVMFD6H852NLT1G onsemi

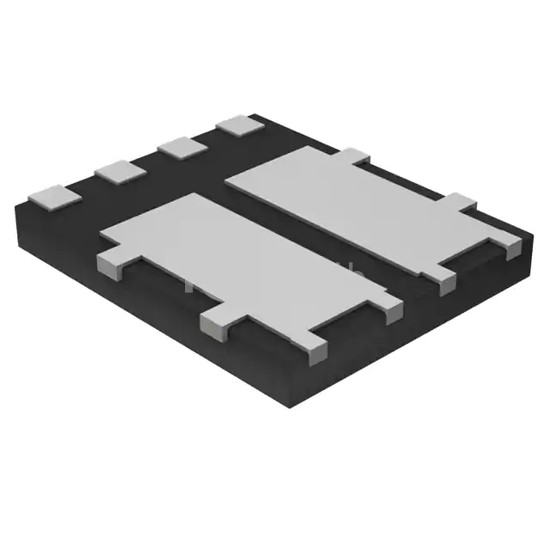

NVMFD6H852NLT1G

MOSFET N-CH 80V 7A/25A 8DFN DL

NVMFD6H852NLT1G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 7A/25A 8DFN DL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,138

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	7A (Ta), 25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	25.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2V @ 26µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	521 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta), 38W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6) Dual Flag (SO8FL-Dual)
Package / Case	8-PowerTDFN
