NVH4L020N090SC1

In Stock: 5,729

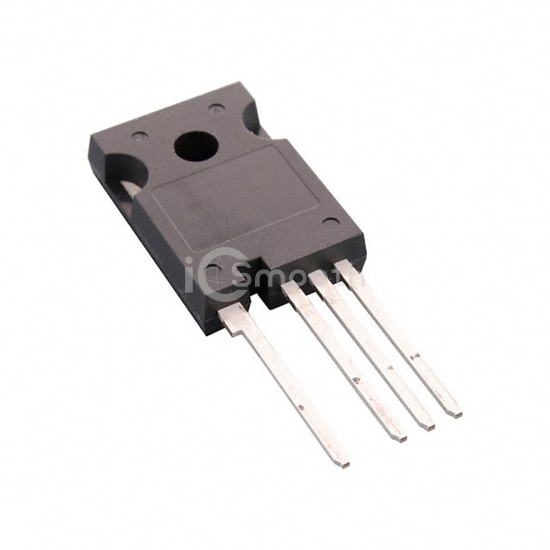

NVH4L020N090SC1 - onsemi - Transistors - FETs, MOSFETs - Single
REF: NVH4L020N090SC1 onsemi
NVH4L020N090SC1

onsemi

SIC MOSFET 900V TO247-4L

NVH4L020N090SC1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SIC MOSFET 900V TO247-4L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 5,729

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C116A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V, 18V
Rds On (Max) @ Id, Vgs16mOhm @ 60A, 18V
Vgs(th) (Max) @ Id4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs196 nC @ 15 V
Vgs (Max)+22V, -8V
Input Capacitance (Ciss) (Max) @ Vds4415 pF @ 450 V
FET Feature-
Power Dissipation (Max)484W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4L
Package / CaseTO-247-4
