NVH4L018N075SC1

In Stock: 7,295

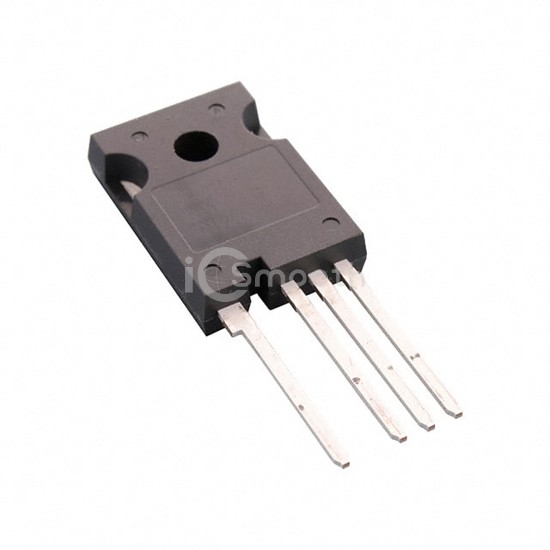

NVH4L018N075SC1 - onsemi - Transistors - FETs, MOSFETs - Single
REF: NVH4L018N075SC1 onsemi
NVH4L018N075SC1

onsemi

SIC MOS TO247-4L 750V

NVH4L018N075SC1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SIC MOS TO247-4L 750V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 7,295

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)750 V
Current - Continuous Drain (Id) @ 25°C140A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V, 18V
Rds On (Max) @ Id, Vgs18mOhm @ 66A, 18V
Vgs(th) (Max) @ Id4.3V @ 22mA
Gate Charge (Qg) (Max) @ Vgs262 nC @ 18 V
Vgs (Max)+22V, -8V
Input Capacitance (Ciss) (Max) @ Vds5010 pF @ 375 V
FET Feature-
Power Dissipation (Max)500W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4L
Package / CaseTO-247-4
