Name: NVD6416ANLT4G-001
Brand: onsemi
SKU: NVD6416ANLT4G-001
Price: 1.08 USD
Availability: InStock

REF: NVD6416ANLT4G-001 onsemi

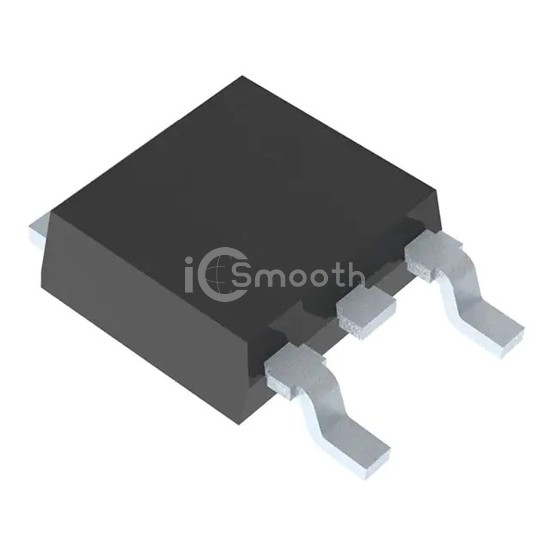

NVD6416ANLT4G-001

MOSFET N-CH 100V 19A DPAK-3

NVD6416ANLT4G-001 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 19A DPAK-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 80,000

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	74mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	71W (Tc)
Operating Temperature	-55°C ~ 175°C
Mounting Type	Surface Mount
Supplier Device Package	DPAK-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
