Name: NVD6415ANT4G-VF01
Brand: onsemi
SKU: NVD6415ANT4G-VF01
Availability: InStock

REF: NVD6415ANT4G-VF01 onsemi

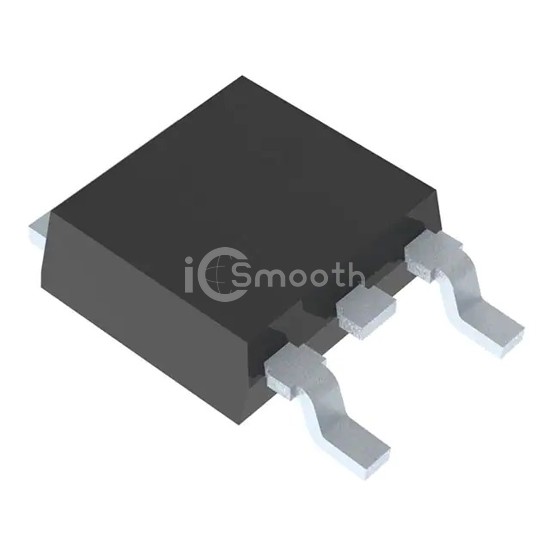

NVD6415ANT4G-VF01

MOSFET N-CH 100V 23A DPAK

NVD6415ANT4G-VF01 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 23A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 1,643

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	55mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	700 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
