Name: NVD5490NLT4G
Brand: onsemi
SKU: NVD5490NLT4G
Availability: InStock

REF: NVD5490NLT4G onsemi

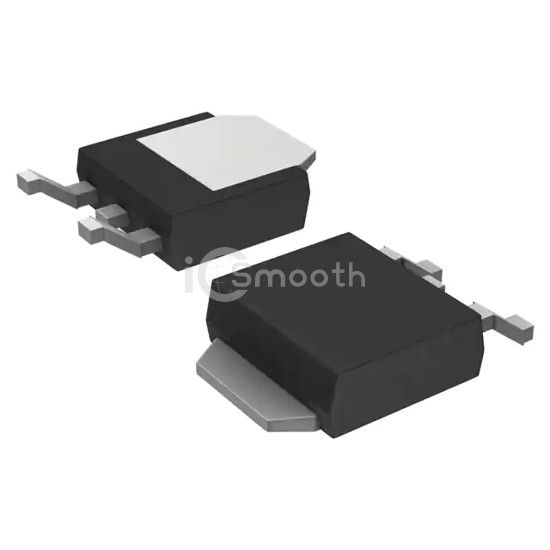

NVD5490NLT4G

MOSFET N-CH 60V 5A/17A DPAK-3

NVD5490NLT4G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 5A/17A DPAK-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 4,520

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta), 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	64mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	365 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.4W (Ta), 49W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
