Name: NVD4809NHT4G
Brand: onsemi
SKU: NVD4809NHT4G
Availability: InStock

REF: NVD4809NHT4G onsemi

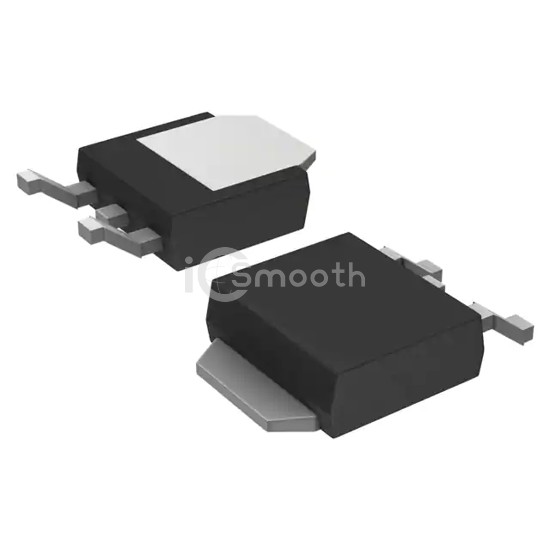

NVD4809NHT4G

MOSFET N-CH 30V 9A/58A DPAK-3

NVD4809NHT4G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 9A/58A DPAK-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 4,387

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	9A (Ta), 58A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 11.5V
Rds On (Max) @ Id, Vgs	9mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	44 nC @ 11.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2155 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta), 52W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
