Name: NVBLS4D0N15MC
Brand: onsemi
SKU: NVBLS4D0N15MC
Price: 11.62 USD
Availability: InStock

REF: NVBLS4D0N15MC onsemi

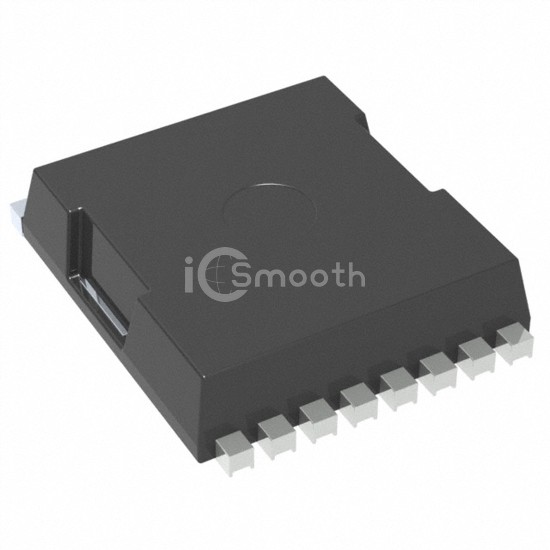

NVBLS4D0N15MC

MOSFET N-CH 150V 19A/187A 8HPSOF

NVBLS4D0N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 19A/187A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 1,880

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	19A (Ta), 187A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	4.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4.5V @ 584µA
Gate Charge (Qg) (Max) @ Vgs	90.4 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7490 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	3.4W (Ta), 316W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HPSOF
Package / Case	8-PowerSFN
