NVBLS1D7N08H

In Stock: 1,523

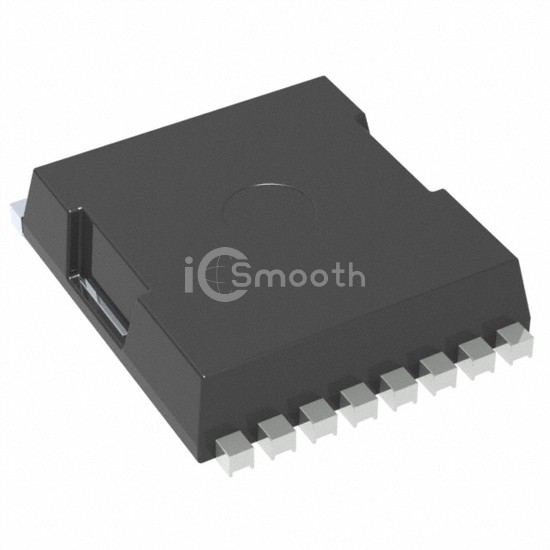

NVBLS1D7N08H - onsemi - Transistors - FETs, MOSFETs - Single
REF: NVBLS1D7N08H onsemi
NVBLS1D7N08H

onsemi

MOSFET - POWER, SINGLE N-CHANNEL

NVBLS1D7N08H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET - POWER, SINGLE N-CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 1,523

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C33A (Ta), 241.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.7mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 479µA
Gate Charge (Qg) (Max) @ Vgs121 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7675 pF @ 40 V
FET Feature-
Power Dissipation (Max)4.4W (Ta), 237.5W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HPSOF
Package / Case8-PowerSFN
