NVBLS0D7N06C

In Stock: 9,440

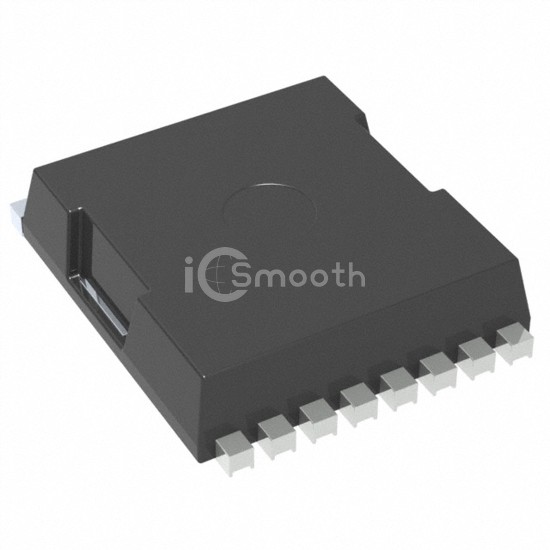

NVBLS0D7N06C - onsemi - Transistors - FETs, MOSFETs - Single
REF: NVBLS0D7N06C onsemi
NVBLS0D7N06C

onsemi

MOSFET N-CH 60V 54A/470A 8HPSOF

NVBLS0D7N06C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 54A/470A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 9,440

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C54A (Ta), 470A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.75mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 661µA
Gate Charge (Qg) (Max) @ Vgs170 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds13730 pF @ 30 V
FET Feature-
Power Dissipation (Max)4.2W (Ta), 314W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HPSOF
Package / Case8-PowerSFN
