Name: NVBGS1D2N08H
Brand: onsemi
SKU: NVBGS1D2N08H
Price: 4.82 USD
Availability: InStock

REF: NVBGS1D2N08H onsemi

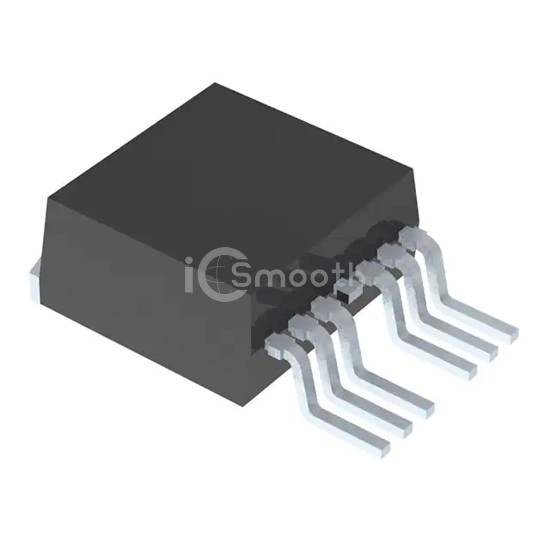

NVBGS1D2N08H

T8-80V IN SUZHOU D2PAK7L FOR AUT

NVBGS1D2N08H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. T8-80V IN SUZHOU D2PAK7L FOR AUT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 6,020

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	43A (Ta), 290A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.34mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 650µA
Gate Charge (Qg) (Max) @ Vgs	160 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10830 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	5.7W (Ta), 259W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
