Name: NVBG040N120SC1
Brand: onsemi
SKU: NVBG040N120SC1
Price: 26.13 USD
Availability: InStock

REF: NVBG040N120SC1 onsemi

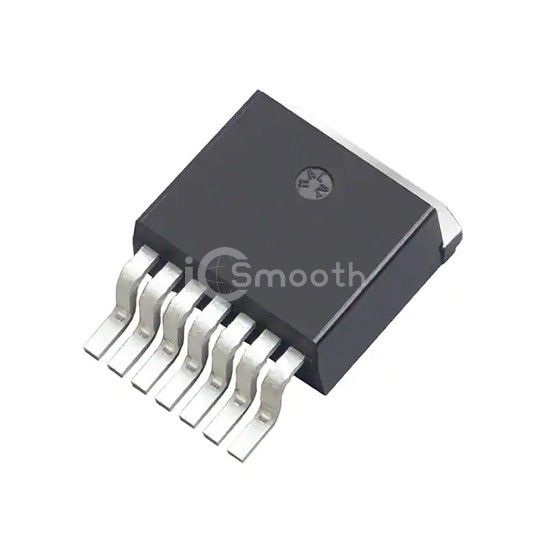

NVBG040N120SC1

TRANS SJT N-CH 1200V 60A D2PAK-7

NVBG040N120SC1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. TRANS SJT N-CH 1200V 60A D2PAK-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 5,926

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	56mOhm @ 35A, 20V
Vgs(th) (Max) @ Id	4.3V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	106 nC @ 20 V

Vgs (Max)	+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds	1789 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	357W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
