Name: NUP3115UPMUTAG
Brand: onsemi
SKU: NUP3115UPMUTAG
Price: 0.41 USD
Availability: InStock

REF: NUP3115UPMUTAG onsemi

NUP3115UPMUTAG

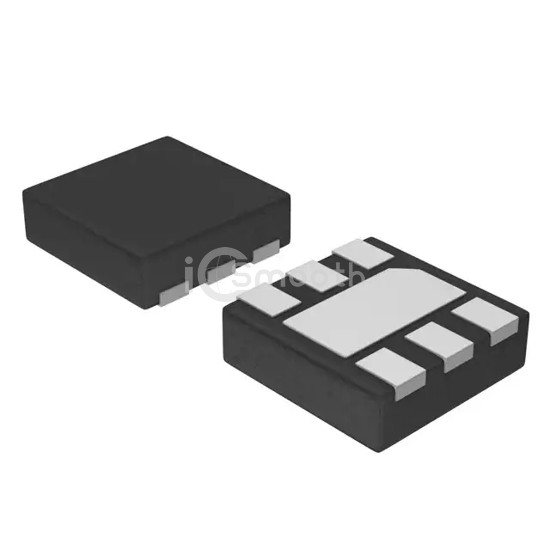

TVS DIODE 5.5VWM 9.4VC 6UDFN

NUP3115UPMUTAG is a TVS - Diodes manufactured by onsemi. TVS DIODE 5.5VWM 9.4VC 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,917

Tiered Pricing USD

1+ $0.4100 —

10+ $0.3680 -10% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	3
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	9.4V (Typ)
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	0.8pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-UDFN (1.6x1.6)
