Name: NTTFS5D9N08HTWG
Brand: onsemi
SKU: NTTFS5D9N08HTWG
Price: 2.27 USD
Availability: InStock

REF: NTTFS5D9N08HTWG onsemi

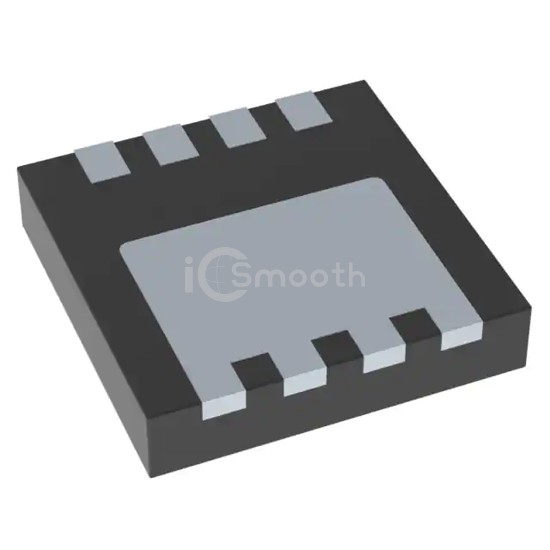

NTTFS5D9N08HTWG

MOSFET N-CH 80V 13A/84A 8PQFN

NTTFS5D9N08HTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 13A/84A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 9,108

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 84A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	5.9mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	4V @ 120µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2040 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 100W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
