Name: NTTFS3D7N06HLTWG
Brand: onsemi
SKU: NTTFS3D7N06HLTWG
Price: 2.53 USD
Availability: InStock

REF: NTTFS3D7N06HLTWG onsemi

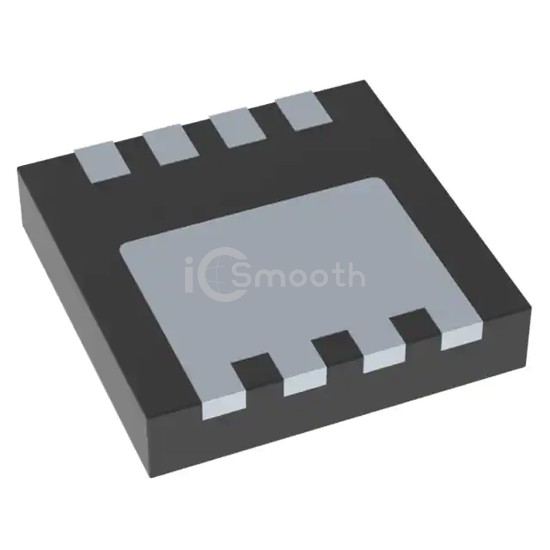

NTTFS3D7N06HLTWG

MOSFET N-CH 60V 16A/103A 8PQFN

NTTFS3D7N06HLTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 16A/103A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 7,825

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	16A (Ta), 103A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.9mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	2V @ 120µA
Gate Charge (Qg) (Max) @ Vgs	32.7 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2383 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
