Name: NTTFS2D1N04HLTWG
Brand: onsemi
SKU: NTTFS2D1N04HLTWG
Price: 2.27 USD
Availability: InStock

REF: NTTFS2D1N04HLTWG onsemi

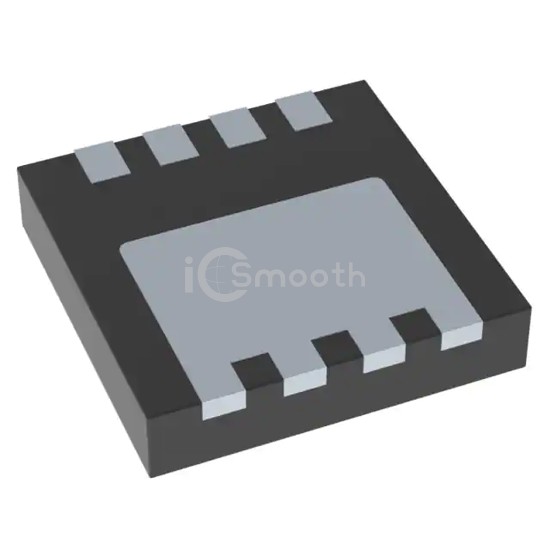

NTTFS2D1N04HLTWG

MOSFET N-CH 40V 24A/150A 8PQFN

NTTFS2D1N04HLTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 24A/150A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 6,429

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.1mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	2V @ 120µA
Gate Charge (Qg) (Max) @ Vgs	43.6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2745 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
