Name: NTTFS1D2N02P1E
Brand: onsemi
SKU: NTTFS1D2N02P1E
Price: 1.87 USD
Availability: InStock

REF: NTTFS1D2N02P1E onsemi

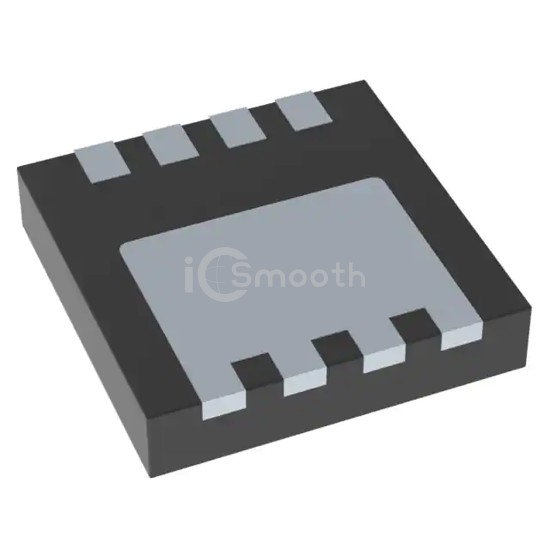

NTTFS1D2N02P1E

MOSFET N-CH 25V 23A/180A 8PQFN

NTTFS1D2N02P1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 23A/180A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 7,316

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	23A (Ta), 180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1mOhm @ 38A, 10V
Vgs(th) (Max) @ Id	2V @ 934µA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 4.5 V

Vgs (Max)	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds	4040 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	820mW (Ta), 52W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
