Name: NTTFS022N15MC
Brand: onsemi
SKU: NTTFS022N15MC
Price: 2.99 USD
Availability: InStock

REF: NTTFS022N15MC onsemi

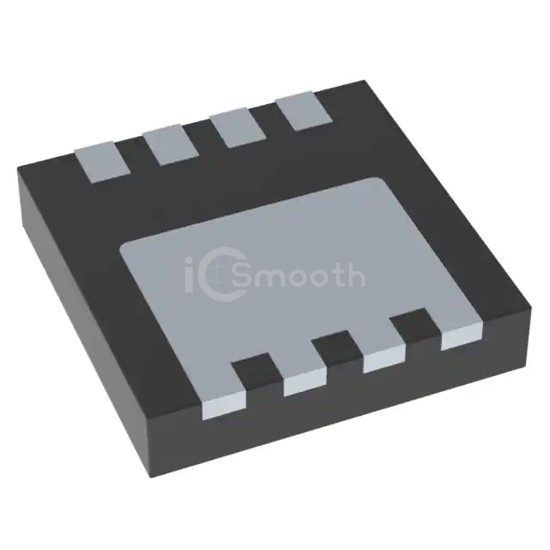

NTTFS022N15MC

POWER MOSFET, N CHANNEL, 150V, 3

NTTFS022N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER MOSFET, N CHANNEL, 150V, 3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 7,501

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	7.4A (Ta), 37.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	22mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	4.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1315 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta), 71.4W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
