Name: NTTFS008P03P8Z
Brand: onsemi
SKU: NTTFS008P03P8Z
Price: 3.26 USD
Availability: InStock

REF: NTTFS008P03P8Z onsemi

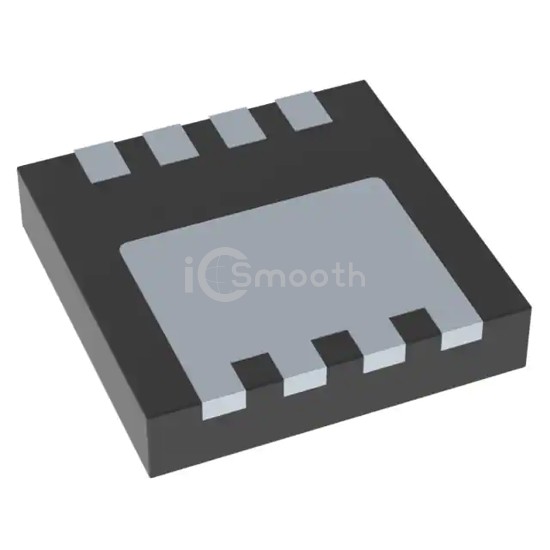

NTTFS008P03P8Z

MOSFET P-CH 30V 22A/96A 8PQFN

NTTFS008P03P8Z is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 30V 22A/96A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 2,202

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 96A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	134 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	5600 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.36W (Ta), 50W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3)
Package / Case	8-PowerWDFN
