Name: NTTFS002N04CTAG
Brand: onsemi
SKU: NTTFS002N04CTAG
Price: 1.12 USD
Availability: InStock

REF: NTTFS002N04CTAG onsemi

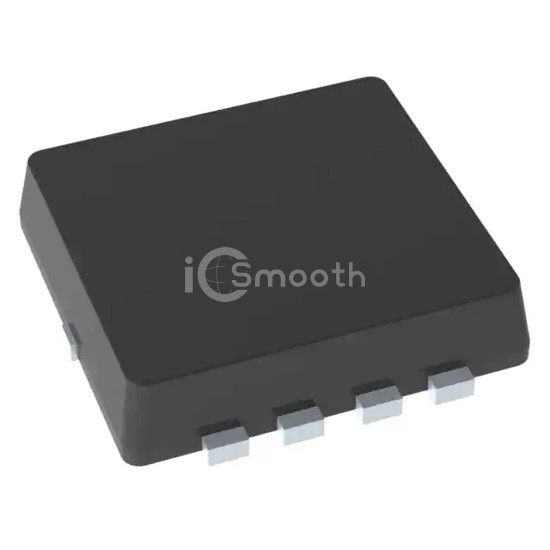

NTTFS002N04CTAG

MOSFET N-CH 40V 27A/136A 8WDFN

NTTFS002N04CTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 27A/136A 8WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 6,056

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	27A (Ta), 136A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.5V @ 90µA
Gate Charge (Qg) (Max) @ Vgs	34 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2250 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta), 85W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WDFN (3.3x3.3)
Package / Case	8-PowerWDFN
