NTNUS3171PZT5G

In Stock: 29,645

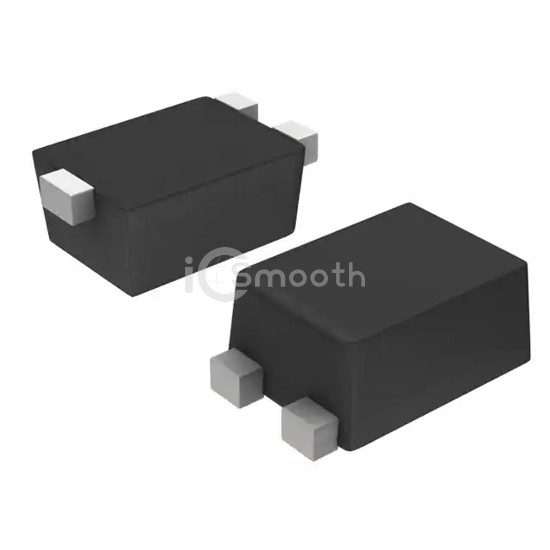

NTNUS3171PZT5G - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTNUS3171PZT5G onsemi
NTNUS3171PZT5G

onsemi

MOSFET P-CH 20V 150MA SOT1123

NTNUS3171PZT5G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 150MA SOT1123. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-1123.

Datasheet Request a Quote

In Stock: 29,645

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C150mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs3.5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds13 pF @ 15 V
FET Feature-
Power Dissipation (Max)125mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-1123
Package / CaseSOT-1123
